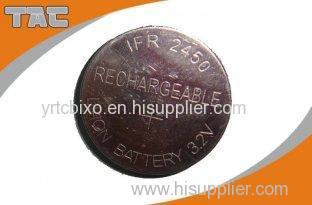

Rechargeable Lithium Coin Cell Battery LFR2450 80mAh 3.2V

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: LiFePO4 LIR2450rechargeable...


Rechargeable Lithium Coin Cell Battery LFR2450 80mAh 3.2V

Features:



Rechargeable Lithium Coin Cell Battery LFR2450 80mAh 3.2V



Features:

The replacement of the primary CR2450 3.0V button cell

LiFePO4 material,  the stable discharge voltage at 3.2V

With super long cycle life

High quality



Quick Detail:

Place of Origin:

Guangdong China (Mainland)

Brand Name:

TAC

Model Name:

Rechargeable Lithium Button Cell LFR2450 80mAh 3.2V

Nominal Voltage

3.2V(3.0V)

Nominal Capacity:

80mAh

Size:

Max 24.5× Max 5.2mm

Weight:

5.0g



Packing & Delivery:

MOQ:

2, 400set

Packing:

Paper Carton,  100pcs/box,  24 box/carton,  2, 400pcs/Carton;

 N.W. 12KG/Carton ; G.W. 14KG/Carton

Delivery Detail:

5 pcs sample 3days after order

Mass order with stock 15days after T/T

Without stock 45days



Specification:

No.

ITEM

RATED PERFORMANCE

REMARK

1

Rated Capacity

Typical

80mAh

Standard discharge(0.2 C5A)

after Standard charge

Minimum

75mAh

2

Nominal Voltage

3.2

Mean Operation Voltage During

Standard Discharge After

Standard  Charge

3

Voltage at end of

Discharge

2.0V



4

Charging Voltage

3.65V



5

Internal Impedance

≤600mΩ

The measure must be uses the

cells that within one week after

shipment and cycles less than

5 times

6

Standard charge

Constant Current 0.2C5A

Constant Voltage 3.65V

0.05 C5A cut-off

Charge time : Approx 8h

7

Standard discharge

Constant current 0.2C5A

end voltage 2.0V



8

Maximum Continuous Charge Current

80mA



9

Maximum Continuous Operation Current

80mA



10

Impulse Current(≤0.1S)

3 C5A



11

Operation Temperature Range

Charge: 0~45°C

60±25%R.H.

Discharge: -20~60°C

12

Storable Temperature

Range

1YEAR   -20~25°C

60±25%R.H.

3MONTH -20~40°C

1WEEK  -20~60°C

13

Weight

Approx: 5 g



14

Cell  Dimension

Max 24.5× Max 5.2mm

Bare Cell



Available Model for button cell:

Battery voltage: 1.5V, 3.0V, 3.6V;

Battery model: 1025, 1216, 1225, 1616, 1620, 1632, 2016, 2025, 2032, 2330, 2430, 2450, 2477, etc.

Cell Chemical:

Primary Lithium: Li/MnO2  3.0V

Primary Lithium: Li/SOCl2  3.6V

Primary Lithium: Li/FeS2  1.5V

Primary Lithium: ML/BR   3.0V

Rechargeable Lithium: LiCoO2/3E  3.7V

Rechargeable Lithium: LiFePO4   3.2V
