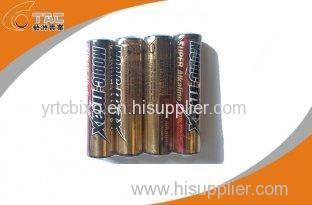

Modic-max Brand Alkaline Battery LR6/AA 1.5v with High Capacity

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 1.5V Alkaline Battery



Modic-max Brand Alkaline Battery LR6/AA 1.5v with High Capacity

A. Alkaline Ba



Modic-max Brand Alkaline Battery LR6/AA 1.5v with High Capacity



A. Alkaline Battery LR6/AA 1.5V Dry Battery


B. D.G Brand, OEM Brand availble,


C. Shrink packing with gift box


D. Super High Capacity and Competitive Price


E. Mercury and cadmium free



For TV-Remote Control,  clock,  test meter,  alarm clock,  etc.



Famous Brand,  High Quality and Fast  Respond



Scope



This specification defines the technical requirements for LR03-plus alkaline battery.



Cross References: ATC IEC JIS GB(CHINA)



LR03 LR03 AM-4 LR03



2. Purpose



To assure that any LR03 battery manufactured or procured by YongGao will meet or



exceed our customers expectations.



3. Reference Document



IEC 60086-1:2000 …Primary Batteries-Part1:General



IEC 60086-2:2000 …Primary Batteries-Part2:Physical and Electrical Specification



GB/T 7112-1998 …Zinc-Manganese Dry Batteries of R03, R1, R6, R14and R20



Alkaline Zinc-Manganese Dry Batteries of



LR03, LR1, LR6, LR14and LR20



4. Chemical System



Alkaline Zinc-Manganese Dioxide (KOH Electrolyte)



MERCURY AND CADMIUM ARE NOT ADDED IN BATTERY



5. Nominal Voltage : 1.5volt



6. Weight : approximate 11.5 g



7. Jacket: Foil Label



8. Nominal Capacity



1100mah (Conditions: 75Ωdischarge 4hours per day at 20±2,  end point voltage 0.9v)



9. Electrical Characteristics



Off-load
Voltage(v)

On-load
Voltage(v)

Short circuit
Current(A)

Acceptance Standard

Initialwithin30 days

1.58

1.45

6

GB2828-87 commonly
sampling AQL=0.4

After 12months

1.55

1.4

5



conditions: 3.9Ω±0.5% load resistance,  measuring time 0.3 seconds,  temperature at 20±2,



the hairspring type ampere meter with ±0.5% accuracy (0.5level) shall be used.



10. Service Time(condition: test temp. 20±2, tested within 30 days after delivery)



Discharge Condition

IEC
Standard

Average Minimum Discharge Time

Discharge
Load

Daily
Discharge
time

End Point
Voltage(v)

Initial
within30day

After 12mth at
20±2

75Ω

4h

0.9

44h

67h

5h

5.1Ω

4m/h-8h/d

0.9

130min

225min

215min

10Ω

 1h

0.9

5.0h

 7.5h

 7.0h

3.6Ω

15sec/min

0.9

350cycles

600cycles

530cycles

20Ω

24h

0.9

/

17.5h

16.2h



Standard Initial within30day



After 12mth at 20±2



75Ω 4h 0.9 44h 67h 63.5h



5.1Ω 4m/h-8h/d 0.9 130min 225min 215min



10Ω 1h 0.9 5.0h 7.5h 7.0h



3.6Ω 15sec/min 0.9 350cycles 600cycles 530cycles
