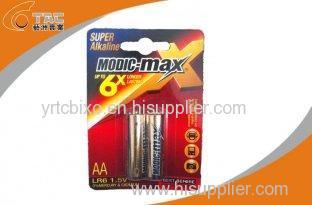

Alkaline Battery LR6/AA 1.5V Dry Battery Modic-max Brand for Test Meter

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 1.5V Alkaline Battery



Alkaline Battery LR6/AA 1.5V Dry Battery Modic-max Brand for Test Meter

A. Alk



Alkaline Battery LR6/AA 1.5V Dry Battery Modic-max Brand for Test Meter



A. Alkaline Battery LR6/AA 1.5V Dry Battery


B. D.G Brand, OEM Brand availble,


C. Shrink packing with gift box


D. Super High Capacity and Competitive Price


E. Mercury and cadmium free



For TV-Remote Control,  clock,  test meter,  alarm clock,  etc.



Famous Brand,  High Quality and Fast  Respond



1. Scope



This specification defines the technical requirements for LR6 alkaline battery.



Cross References: ATC IEC JIS GB (CHINA)



LR6 LR6 AM-3 LR6



2. Purpose



To assure that any LR6 battery manufactured or procured by YongGao will meet or



exceed our customers expectations.



3. Reference Document



IEC 60086-1:2000 …Primary Batteries-Part1:General



IEC 60086-2:2000 …Primary Batteries-Part2:Physical and Electrical Specification



GB/T 7112-1998 …Zinc-Manganese Dry Batteries of R03, R1, R6, R14and R20



Alkaline Zinc-Manganese Dry Batteries of LR03, LR1, LR6, LR14and LR20



4. Chemical System



Alkaline Zinc-Manganese Dioxide (KOH Electrolyte)



MERCURY AND CADMIUM ARE NOT ADDED IN BATTERY .



5. Nominal Voltage: 1.5volt



6. Weight: approximate 22.5g



7. Jacket: Foil Label



8. Nominal Capacity



1900mah (Conditions: 10Ωdischarge 1hours per day at 20±2,  end point voltage 0.9v)



9. Electrical Characteristics



Off-load
Voltage(v)

On-load
Voltage(v)

Short circuit
Current(A)

Acceptance Standard

Initialwithin30 days

1.58

1.5

7

GB2828 commonlysampling
AQL=0.4

After 12months

1.55

1.45

7



conditions: 3.9Ω±0.5% load resistance,  measuring time 0.3 seconds,  temperature at 20±2,



the hairspring type ampere meter with ±0.5% accuracy (0.5level) shall be used.



10. Service Time (condition: test temp. 20±2, tested within 30 days after delivery)



Discharge Condition

IEC
Standard

Average Minimum Discharge Time

Discharge
Load

Daily
Discharge
time

End Point
Voltage(v)

Initial
within30day

After 12mth at
20±2

43Ω

4h

0.9

60h

82h

77h

3.9Ω

1h

0.9

4.0h

6.5h

1h

10Ω

 1h

0.9

11.0h

16.8h

 15.5h

1.8/Ω

15sec/min

0.9

320cycles

530cycles

470cycles

10Ω

24h

0.9

/

17.5h

16.5h
